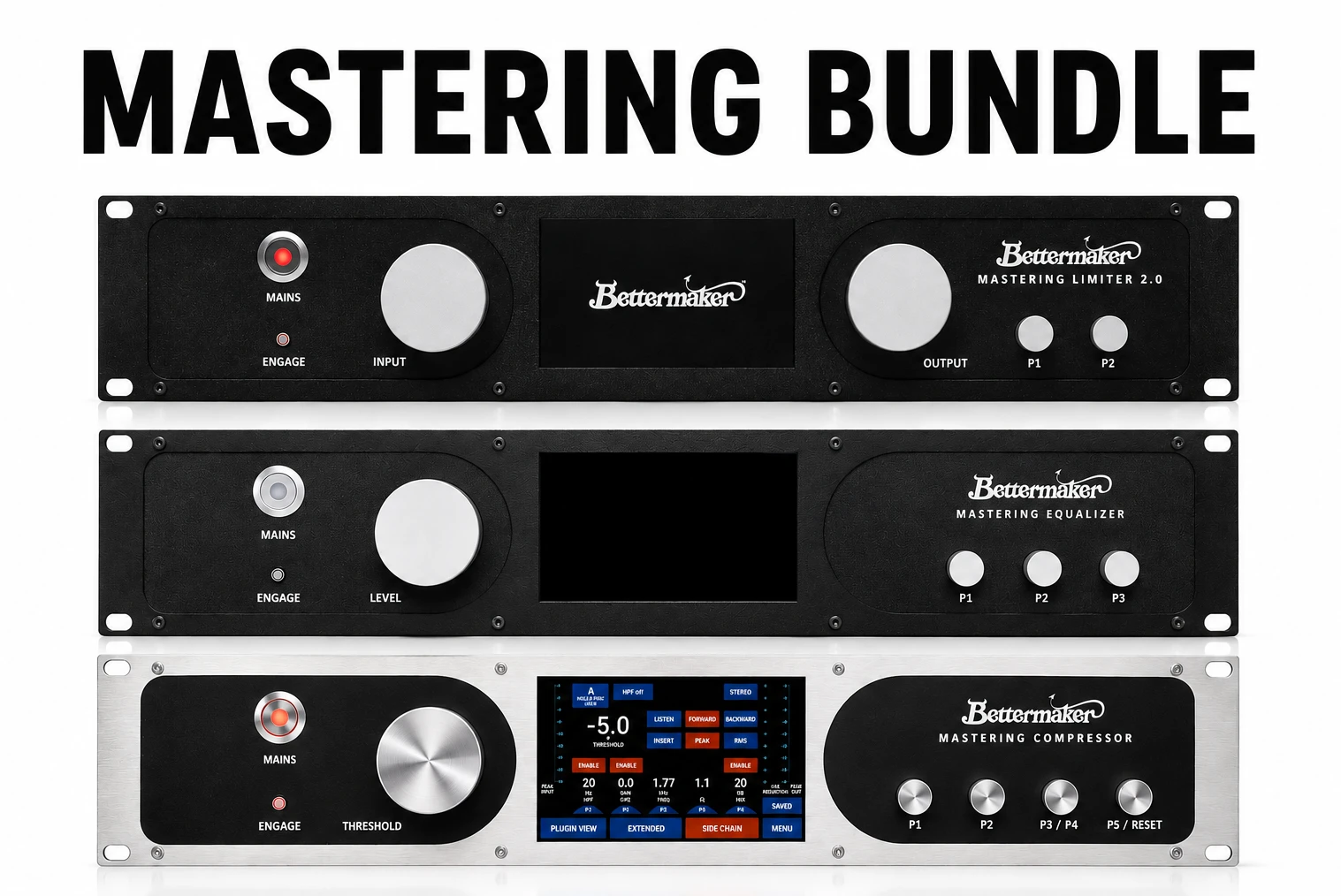

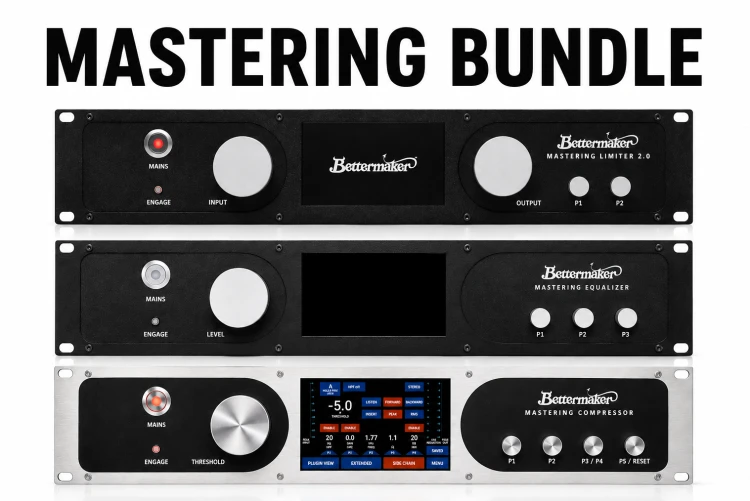

Bettermaker MASTERING Bundle

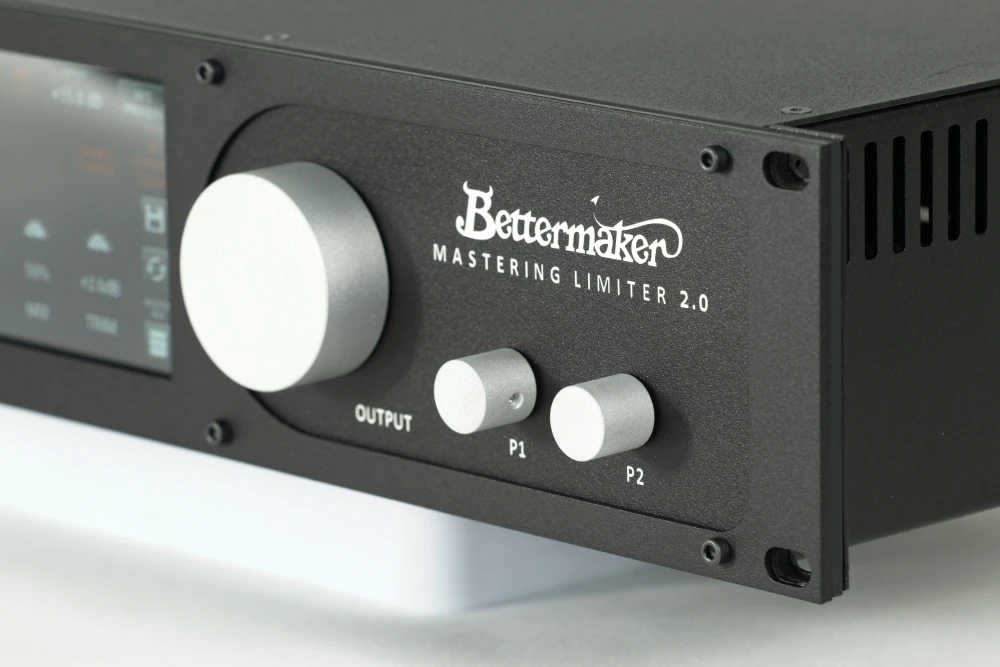

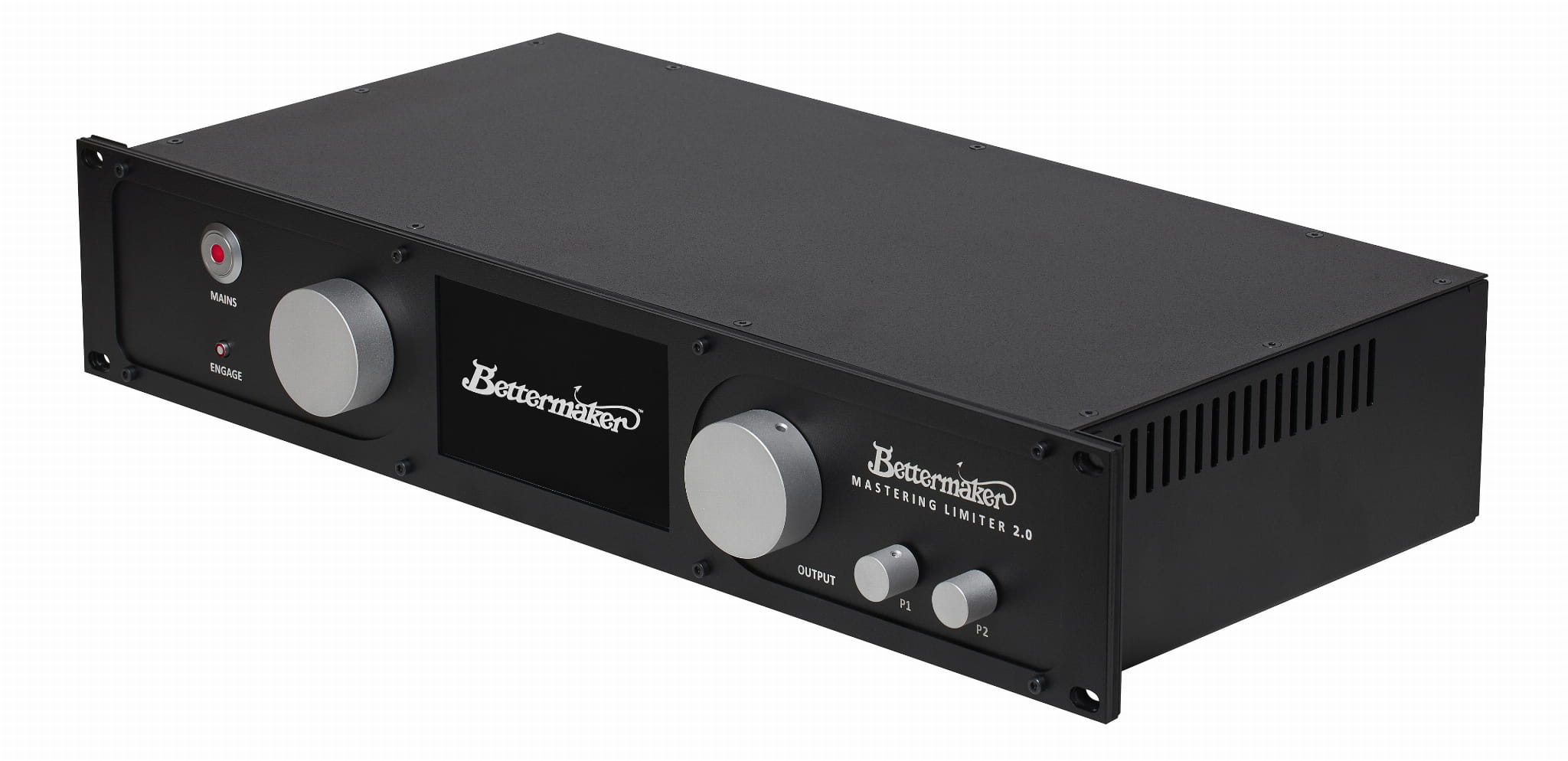

Bettermaker Mastering Limiter 2.0

Hybrid Analog-Digital Mastering Limiter for Precision Stereo Bus Processing

The Bettermaker Mastering Limiter 2.0 is a mastering-grade analog hardware processor designed for professional audio equipment workflows where transparent sonic performance, repeatable mastering settings, and precision audio control are essential. Combining a 100% analog signal path with advanced digital control and DAW integration, the Mastering Limiter 2.0 delivers hybrid analog-digital processing engineered for modern audio mastering, stereo bus processing, and high-end mastering workflow integration.

Developed for mastering engineers, mixing engineers, recording engineers, post-production engineers, and professional studios, the Mastering Limiter 2.0 extends Bettermaker’s engineering-focused design philosophy with enhanced dynamics processing, advanced metering, and flexible harmonic enhancement tools.

The updated limiting engine, redesigned clipper section, and expanded color processing architecture provide mastering-grade accuracy while preserving analog character with digital recall.

Precision Audio Mastering with Analog Signal Path Integrity

At the core of the Mastering Limiter 2.0 is a fully analog mastering signal chain controlled in the digital domain for precise and repeatable mastering workflow operation. This hybrid analog workflow enables rapid parameter adjustments, stereo compression precision, instant preset recall, and hardware-software integration without compromising signal path optimization.

Key mastering functions include:

• 100% analog signal path

• Intelligent, manual, and BPM-based release modes

• Variable mix between limiting and clipping

• Flexible input/output link mode

• Mid/Side processing mode

• True bypass relay switching

• Internal memory with preset recall

• DAW automation via USB connection

The redesigned sidechain section supports advanced transient control and dynamic range control with selectable high-pass filtering and MID Boost functionality for refined stereo enhancement and mastering chain flexibility.

Limiting and Clipping Architecture

The Mastering Limiter 2.0 introduces a redesigned clipping stage with two independent clipper sections and trim control, supporting transparent compression and controlled harmonic enhancement within demanding mastering workflows.

Limiter specifications include:

• Maximum gain reduction: 20 dB

• Attack time: 0.1 – 250 ms

• Release time: 2 ms – 2 s + IREL

• Input adjust range: 0 to +20 dB

• Output adjust range: -10 to +12 dB

• Automatic makeup gain with trim (-/+8 dB range)

The sidechain section features:

• High-pass filter: Off or 20–200 Hz (2nd order)

• Mid Boost: Off or 8 dB @ 2 kHz or 7 kHz

Advanced Color Section for Analog Tone Shaping

The redesigned Color section expands analog EQ processing and analog tone shaping capabilities through a new MS matrix architecture and dual saturation modules.

Two independently controllable color modules can operate simultaneously:

• Color 1 emphasizes predominantly odd harmonics

• Color 2 emphasizes predominantly even harmonics

Both sections can be internally EQed for detailed harmonic enhancement across different frequency ranges, supporting precision audio control in modern mastering and mix bus processing applications.

This flexible saturation architecture allows mastering engineers and audio professionals to integrate analog compression character and stereo enhancement into a professional mastering solution with high-end pro-audio precision.

Integrated Metering and Studio Monitoring Workflow

The Mastering Limiter 2.0 incorporates an advanced touchscreen metering environment designed for studio-grade processing and mastering console integration.

Metering functions include:

• Input, output, and gain reduction monitoring

• VU, PPM, RMS, and Peak metering

• LUFS metering

• K-System metering

• 30-band FFT analyzer

• Goniometer

• Correlation meter

The metering system supports two independent measurement points: hardware output or plugin output, enabling flexible studio monitoring workflow integration within hybrid analog gear environments.

DAW Integration and Recallable Analog Processing

The included Bettermaker plugin enables complete DAW integration and recallable analog processing across major production platforms. Communication between hardware and software is handled via USB connection, allowing the Mastering Limiter 2.0 to function as a digitally controlled analog hardware processor within modern audio engineering workflows.

Digital control features include:

• Preset save and recall

• DAW automation

• Instant parameter reset

• Precisely linked stereo operation

• Rapid and repeatable mastering settings

The digital control section is based on dual high-speed 32-bit microcontrollers, delivering engineering-grade audio tools optimized for professional mastering workflows and advanced signal routing environments.

Technical Specifications

Audio Performance

• Frequency response: 6 Hz – 27 kHz (-0.5 dB, ISO-R40 sweep)

• Frequency flatness: ±0.1 dB (20 Hz – 20 kHz)

• Dynamic range: 107 dB

• THD+N ratio: 0.05%

• THD ratio: 0.03%

• CMRR: >80 dB

• Crosstalk: >76 dB

Connectivity

• Balanced XLR audio connections

• USB Type-B connection for PC/Mac integration

• 12V DC external power connection

Physical Specifications

• 2U enclosure

• Depth: 230 mm

• Shipping weight: 5 kg

The Bettermaker Mastering Limiter 2.0 is engineered for high-end recording studios, mastering environments, broadcast applications, and demanding professional audio workflows requiring transparent compression, analog character, and precise digital recall.

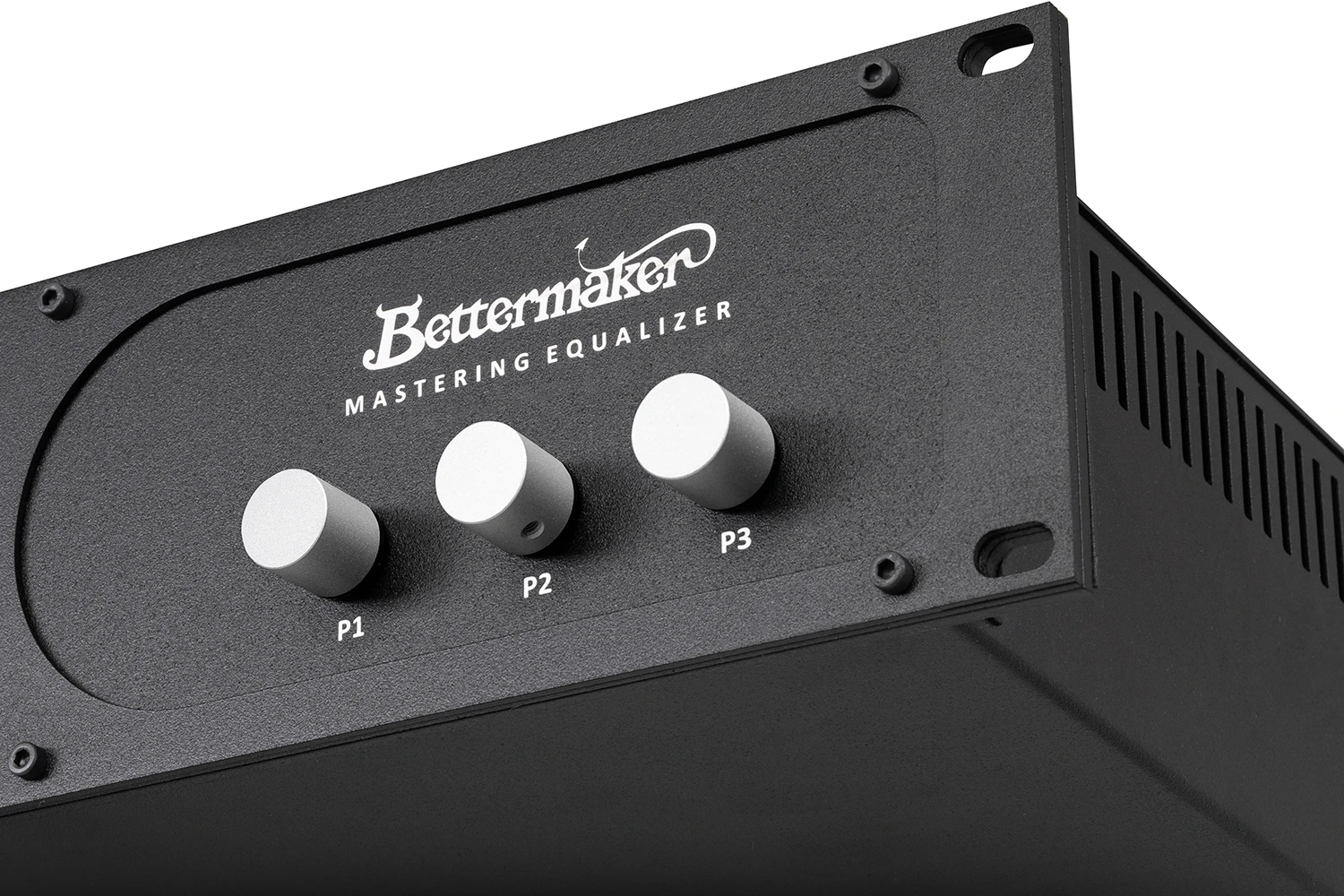

Bettermaker Mastering Equalizer

Hybrid Analog-Digital Mastering Equalizer for Precision EQ Processing

The Bettermaker Mastering Equalizer is a mastering-grade analog hardware processor designed for high-end audio mastering, stereo bus processing, and professional audio equipment workflows requiring precision analog sound with seamless digital recall. Combining a 100% analog signal path with digitally controlled analog processing, the Mastering Equalizer delivers mastering-grade accuracy, advanced EQ processing flexibility, and comprehensive DAW integration for modern hybrid analog workflow environments.

Engineered for mastering engineers, mixing engineers, recording engineers, producers, and professional studios, the Mastering Equalizer integrates parametric EQ processing, passive equalization, precision filtering, and recallable analog processing into a single mastering solution optimized for demanding audio engineering applications.

The hybrid analog-digital processing architecture enables rapid and repeatable mastering settings while preserving the integrity, depth, and transparent sonic performance of the analog signal path.

Advanced Analog EQ Architecture with Digital Precision

The Mastering Equalizer combines four stereo parametric filters with a dedicated passive equalizer section, extended air-band processing, and configurable high-pass and low-pass filters. All parameters are digitally controlled via the integrated touchscreen interface or dedicated DAW plugin, enabling precise audio control and studio integration without compromising analog signal path performance.

Core processing features include:

• 100% analog audio signal path

• Stereo, dual mono, and Mid/Side operation

• Passive and parametric EQ processing

• Digitally controlled analog processing

• USB connectivity for Mac/PC integration

• Total recall and DAW automation

• A/B comparison functionality

• Frequency Search, Gain Lock, Note, and Auto-Q functions

• Live EQ curve visualization

• Integrated RTA analyzer and audio metering

The digitally controlled architecture provides mastering engineers and audio professionals with engineering-grade audio tools optimized for advanced mastering workflow integration and precision signal path optimization.

Parametric EQ Section

The four-band stereo parametric EQ section provides flexible analog EQ processing with variable Q control and selectable bell/shelf operation on the outer bands.

Each band offers:

• ±15 dB boost/cut range

• Variable Q: 0.2 – 7

Frequency ranges:

• EQ1: 22 Hz – 470 Hz (bell/shelf)

• EQ2: 90 Hz – 2 kHz (bell)

• EQ3: 480 Hz – 10 kHz (bell)

• EQ4: 1 kHz – 23 kHz (bell/shelf)

This flexible architecture supports detailed stereo enhancement, analog tone shaping, harmonic enhancement, and precision mastering chain control across a wide range of audio mastering and mix bus processing applications.

Passive Equalization and Advanced Filter Control

In addition to its parametric section, the Mastering Equalizer incorporates a stereo passive equalizer with extended high-frequency enhancement capabilities.

The passive section includes:

• Extended air bands at 20 kHz and 28 kHz

• Dedicated low boost and low cut controls

• Musical passive EQ response optimized for mastering workflows

High-Pass Filter

• Stereo 12 dB/oct or 24 dB/oct operation

• Adjustable cutoff frequency: 10 Hz – 240 Hz

• Resonance functionality

• Extended operation to 6 Hz with resonance enabled

Low-Pass Filter

• Stereo 12 dB/oct operation

• Adjustable cutoff frequency: 2 kHz – 38 kHz

These advanced filtering capabilities enable precise transient control, dynamic range optimization, low-frequency cleanup, and detailed stereo bus processing within demanding professional mastering workflows.

Recallable Analog Processing and DAW Integration

The Mastering Equalizer is designed for seamless hardware-software integration within modern studio monitoring workflow environments.

The dedicated Bettermaker plugin enables:

• Full DAW automation

• Preset save and recall

• Rapid A/B comparison

• Precise stereo linking

• Repeatable mastering settings

• Hardware integration within hybrid analog gear workflows

The internal preset system supports:

• 399 onboard presets with unique names

• Instant parameter reset

• Fast and repeatable adjustments

Communication between hardware and software occurs via USB connection, allowing the unit to function as a digitally controlled analog hardware processor while maintaining complete analog audio processing integrity.

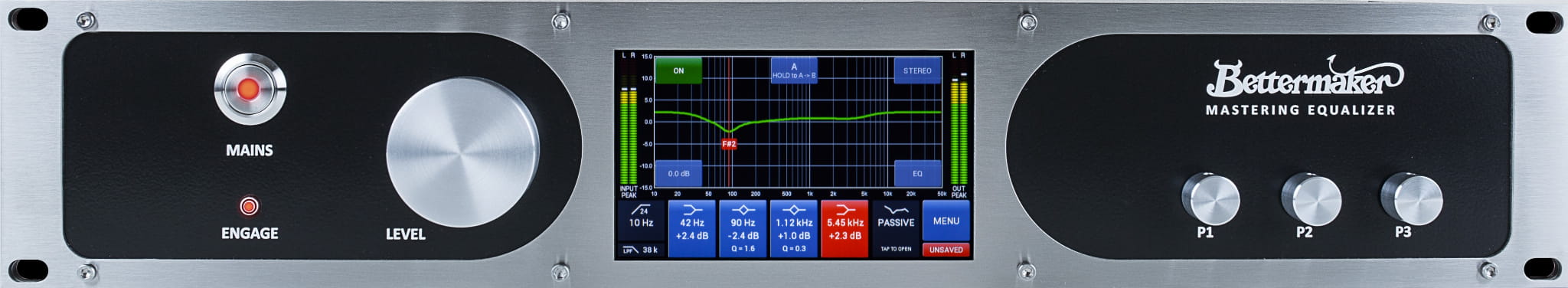

Touchscreen Workflow and Metering

The front-panel control system is built around a 5-inch capacitive touchscreen with integrated encoder control and advanced metering functionality.

Integrated monitoring tools include:

• PEAK and RMS metering

• Real-time FFT analyzer

• Live EQ curve representation

• Input/output level monitoring

• On-screen preset management

The touchscreen interface supports fast studio-grade processing workflows and precision mastering console integration within professional audio environments.

Engineering-Focused Digital Control System

The digital section of the Mastering Equalizer is based around a high-speed 32-bit microcontroller with dedicated firmware responsible for:

• Analog filter management

• User interface control

• Preset handling

• Audio measurement

• USB communication

• Recallable analog processing functions

This hybrid analog workflow architecture enables advanced audio control while preserving mastering-grade analog performance and transparent sonic character.

Technical Specifications

Audio Performance

• Frequency response: 20 Hz – 20 kHz (±0.2 dB)

• Dynamic range: 102 dB (+23 dBu, 22 kHz BW)

• THD+N:

  • 0.03% @ +4 dBu

  • 0.06% @ +18 dBu

• CMRR:

  • Max 85 dB @ 3 kHz

  • Min 52 dB @ 20 Hz

• Crosstalk:

  • Min -100 dB @ 30 Hz

  • Max -65 dB @ 20 kHz

Connectivity

• Balanced stereo XLR input

• Balanced stereo XLR output

• USB connectivity for Mac/PC integration

Electrical Specifications

• Maximum input level: +23 dBu

• Maximum output level: +23 dBu

• Operating level: +4 dBu

• Input impedance: 48 kΩ (balanced)

• Output impedance: 50 Ω + 50 Ω

• 115/230V switchable operation

• Advanced linear power supply with toroidal AC mains transformer

• Maximum power consumption: 20W

Physical Specifications

• 2U rackmount audio processor

• Depth: 230 mm

• Shipping weight: 5.5 kg

The Bettermaker Mastering Equalizer is engineered for high-end recording studios, mastering environments, broadcast applications, and professional audio mastering workflows requiring transparent EQ processing, analog signal path integrity, hybrid analog-digital processing, and precision digital recall.

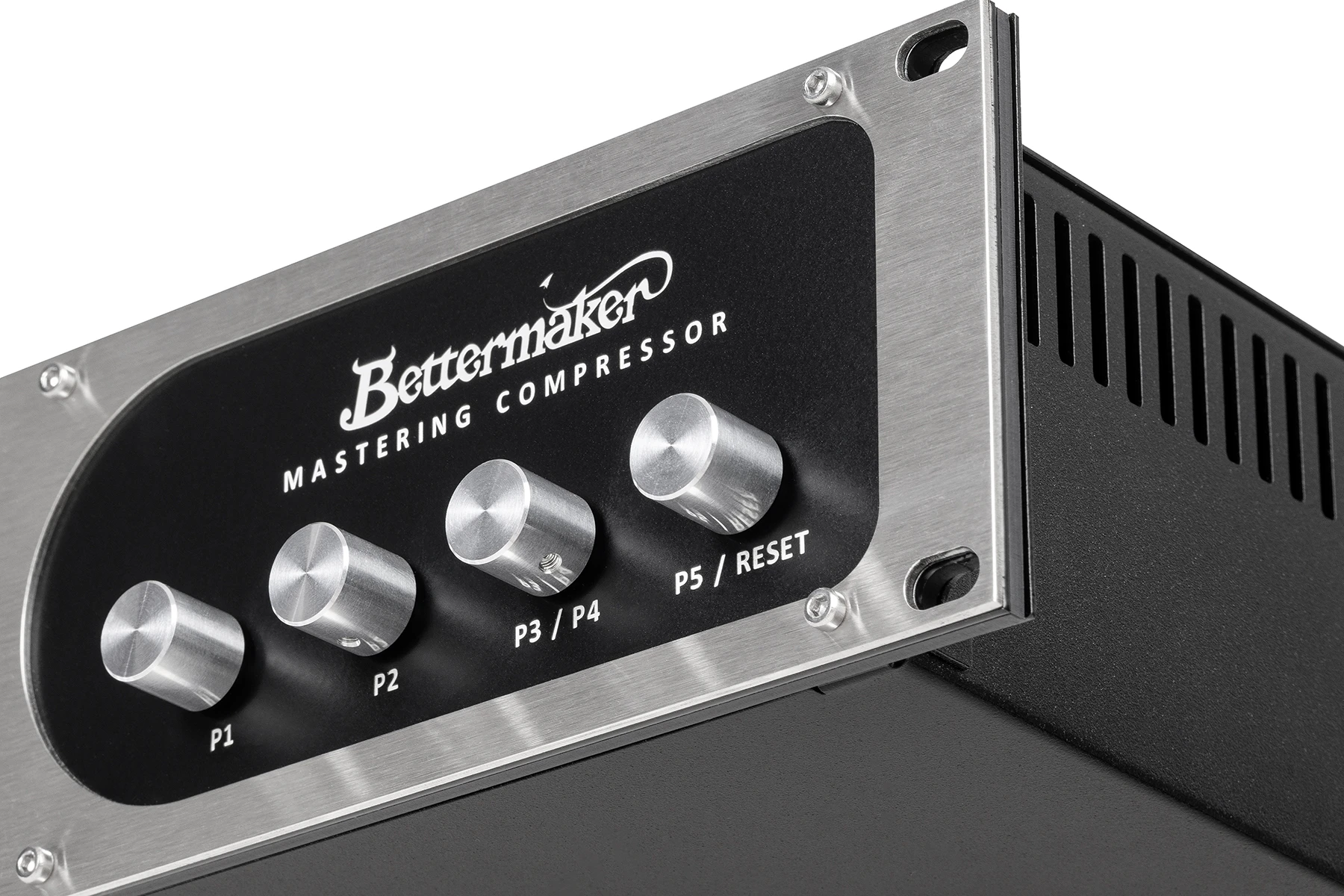

Bettermaker Mastering Compressor

Hybrid Analog-Digital Mastering Compressor for Precision Dynamics Processing

The Bettermaker Mastering Compressor is a mastering-grade analog hardware processor designed for professional audio equipment workflows requiring transparent compression, advanced dynamics processing, and precision digital recall. Combining a 100% analog signal path with digitally controlled analog processing, the Mastering Compressor delivers mastering-grade accuracy, flexible stereo bus processing, and seamless DAW integration for modern hybrid analog workflow environments.

Built for mastering engineers, mixing engineers, recording engineers, post-production engineers, and high-end recording studios, the Mastering Compressor integrates advanced VCA compression architecture with sophisticated sidechain control, harmonic enhancement, and repeatable mastering settings.

Its engineering-focused design combines analog compression character with modern hardware-software integration, enabling precise mastering chain control while maintaining analog signal path integrity.

Advanced Analog Compression with Digital Precision

At the core of the Mastering Compressor is a fully analog VCA compressor architecture featuring PEAK or RMS detection and selectable forward/backward feed operation. All parameters are digitally controlled via the front panel interface or dedicated DAW plugin, enabling precision audio control and rapid recallable analog processing.

The compressor supports:

• Stereo operation

• Dual mono operation

• Mid/Side processing mode

• Solo and sidechain preview functions

• Parallel processing via Dry/Wet MIX control

• Adjustable gain reduction range

• Hardware insert integration within the sidechain path

Three independent compression modes provide flexible audio mastering and stereo compression workflows:

• BM mode

• SG mode

• DX mode

These compression architectures allow audio professionals to adapt the unit for transparent mastering compression, mix bus processing, transient control, and harmonic enhancement applications.

Compressor Control Section

Key compression parameters include:

• Threshold: -35 dB to +5 dB

• Ratio: Variable 0.7:1 – 10:1

• Attack time: 0.1 – 250 ms

• Release time: 10 – 2000 ms

• Knee: Variable 0 – 20 dB

• Range control: 0.1 dB – 20 dB / Off

• Output gain: -5 dB to +15 dB

• Width control (M/S mode): -8 dB to +8 dB

The adjustable Range function allows mastering engineers to precisely limit maximum gain reduction for transparent sonic performance and mastering-grade dynamic range control.

Flexible Sidechain and Signal Path Optimization

The Mastering Compressor incorporates an advanced sidechain architecture engineered for detailed mastering workflow customization and precision audio engineering applications.

The sidechain section includes:

• Sidechain HPF: Off – 370 Hz

• Sidechain LPF: 2 kHz – 18 kHz / Off

• Fully configurable parametric sidechain filter

• Sidechain hardware insert functionality

• Sidechain preview mode

• Selectable PEAK/RMS detection

• Forward/Backward sidechain feed modes

An adjustable input high-pass filter is also available at the compressor input stage:

• HPF24: Off / 15 / 20 / 25 / 30 Hz

This advanced signal routing architecture enables highly controlled stereo bus processing, mastering signal chain optimization, and precision transient management within demanding professional audio workflows.

Harmonic Enhancement and Analog Character Control

Beyond transparent compression, the Mastering Compressor incorporates adjustable harmonic enhancement circuitry for additional analog tone shaping and saturation control.

Integrated Drive and THD processing allow selectable odd or even harmonic coloration:

• THD + DRIVE:

  • Off

  • Odd

  • Even

This functionality enables mastering engineers and audio professionals to introduce controlled analog saturation and harmonic enhancement while preserving mastering-grade clarity and stereo image stability.

The Dry/Wet mix control additionally supports parallel compression workflows directly within the analog hardware processor.

Recallable Analog Processing and DAW Integration

The Mastering Compressor is fully integrated into modern hybrid analog gear environments through dedicated DAW integration and USB connectivity.

The included plugin enables:

• Full parameter automation

• Preset save and recall

• Rapid A/B comparison

• Hardware-software integration

• Repeatable mastering settings

• Studio integration within modern DAW environments

Communication between hardware and software occurs via USB, allowing the unit to function as a digitally controlled analog mastering compressor while preserving the integrity of the analog signal path.

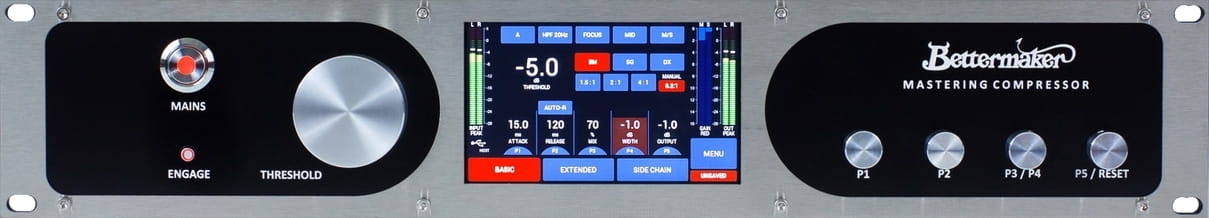

Touchscreen User Interface

The front-panel control environment features a 5-inch capacitive touchscreen with integrated metering and parameter management for streamlined mastering workflow operation.

Integrated metering includes:

• Input level monitoring

• Output level monitoring

• Gain reduction display

• PEAK and RMS measurement

This studio-grade processing environment supports advanced audio control and precision workflow management for mastering console integration and professional studio hardware applications.

Technical Specifications

Audio Performance

• Frequency response: 10 Hz – 22 kHz (±0.2 dB)

• Dynamic range: 106 dB (+23 dBu, 22 kHz BW)

• Signal-to-noise ratio: 87 dB (A-weighted, +4 dBu, unity gain)

• Crosstalk: -83 dB @ 1 kHz

• CMRR:

  • Max 85 dB @ 3 kHz

  • Min 52 dB @ 20 Hz

• THD:

  • 2nd harmonic: <0.06%

  • 3rd harmonic: <0.01%

  • 4th harmonic: <0.006%

Connectivity

• Balanced stereo XLR input

• Balanced stereo XLR output

• USB connectivity for Mac/PC control integration

Electrical Specifications

• Maximum input level: +23 dBu

• Maximum output level: +23 dBu

• Input impedance: 48 kΩ (balanced)

• Output impedance: 50 Ω + 50 Ω

• Universal 100–240V power supply

• Maximum power consumption: 25W

Physical Specifications

• 2U rackmount audio processor

• Depth: 230 mm

• Shipping weight: 5.5 kg

The Bettermaker Mastering Compressor is engineered for professional mastering solution environments requiring precision analog sound, hybrid analog-digital processing, advanced dynamics control, and transparent compression within modern mastering and studio integration workflows.
