Bettermaker Mastering Limiter 2.0

Hybrid Analog-Digital Mastering Limiter for Precision Stereo Bus Processing

The Bettermaker Mastering Limiter 2.0 is a mastering-grade analog hardware processor designed for professional audio equipment workflows where transparent sonic performance, repeatable mastering settings, and precision audio control are essential. Combining a 100% analog signal path with advanced digital control and DAW integration, the Mastering Limiter 2.0 delivers hybrid analog-digital processing engineered for modern audio mastering, stereo bus processing, and high-end mastering workflow integration.

Developed for mastering engineers, mixing engineers, recording engineers, post-production engineers, and professional studios, the Mastering Limiter 2.0 extends Bettermaker’s engineering-focused design philosophy with enhanced dynamics processing, advanced metering, and flexible harmonic enhancement tools.

The updated limiting engine, redesigned clipper section, and expanded color processing architecture provide mastering-grade accuracy while preserving analog character with digital recall.

Precision Audio Mastering with Analog Signal Path Integrity

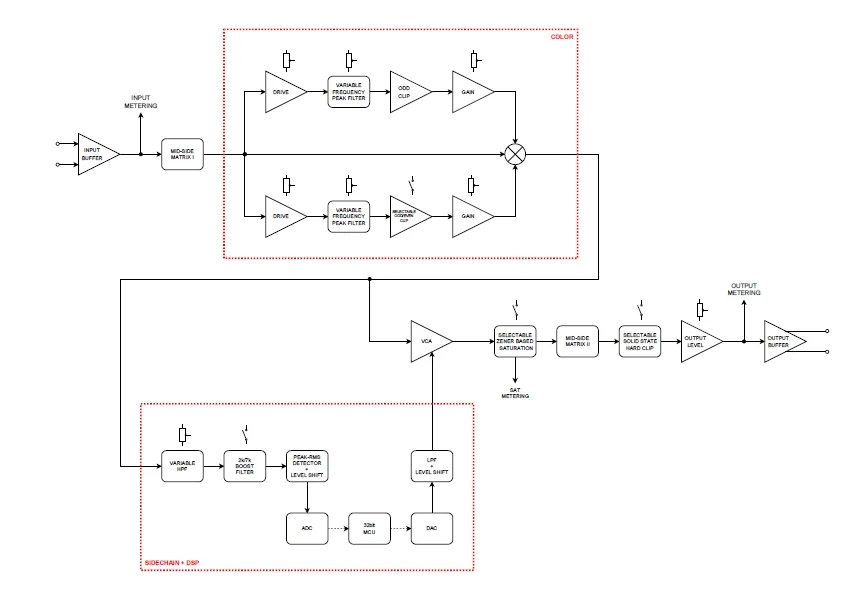

At the core of the Mastering Limiter 2.0 is a fully analog mastering signal chain controlled in the digital domain for precise and repeatable mastering workflow operation. This hybrid analog workflow enables rapid parameter adjustments, stereo compression precision, instant preset recall, and hardware-software integration without compromising signal path optimization.

Key mastering functions include:

• 100% analog signal path
• Intelligent, manual, and BPM-based release modes
• Variable mix between limiting and clipping
• Flexible input/output link mode
• Mid/Side processing mode
• True bypass relay switching
• Internal memory with preset recall
• DAW automation via USB connection

The redesigned sidechain section supports advanced transient control and dynamic range control with selectable high-pass filtering and MID Boost functionality for refined stereo enhancement and mastering chain flexibility.

Limiting and Clipping Architecture

The Mastering Limiter 2.0 introduces a redesigned clipping stage with two independent clipper sections and trim control, supporting transparent compression and controlled harmonic enhancement within demanding mastering workflows.

Limiter specifications include:

• Maximum gain reduction: 20 dB
• Attack time: 0.1 – 250 ms
• Release time: 2 ms – 2 s + IREL
• Input adjust range: 0 to +20 dB
• Output adjust range: -10 to +12 dB
• Automatic makeup gain with trim (-/+8 dB range)

The sidechain section features:

• High-pass filter: Off or 20–200 Hz (2nd order)
• Mid Boost: Off or 8 dB @ 2 kHz or 7 kHz

Advanced Color Section for Analog Tone Shaping

The redesigned Color section expands analog EQ processing and analog tone shaping capabilities through a new MS matrix architecture and dual saturation modules.

Two independently controllable color modules can operate simultaneously:

• Color 1 emphasizes predominantly odd harmonics
• Color 2 emphasizes predominantly even harmonics

Both sections can be internally EQed for detailed harmonic enhancement across different frequency ranges, supporting precision audio control in modern mastering and mix bus processing applications.

This flexible saturation architecture allows mastering engineers and audio professionals to integrate analog compression character and stereo enhancement into a professional mastering solution with high-end pro-audio precision.

Integrated Metering and Studio Monitoring Workflow

The Mastering Limiter 2.0 incorporates an advanced touchscreen metering environment designed for studio-grade processing and mastering console integration.

Metering functions include:

• Input, output, and gain reduction monitoring
• VU, PPM, RMS, and Peak metering
• LUFS metering
• K-System metering
• 30-band FFT analyzer
• Goniometer
• Correlation meter

The metering system supports two independent measurement points: hardware output or plugin output, enabling flexible studio monitoring workflow integration within hybrid analog gear environments.

DAW Integration and Recallable Analog Processing

The included Bettermaker plugin enables complete DAW integration and recallable analog processing across major production platforms. Communication between hardware and software is handled via USB connection, allowing the Mastering Limiter 2.0 to function as a digitally controlled analog hardware processor within modern audio engineering workflows.

Digital control features include:

• Preset save and recall
• DAW automation
• Instant parameter reset
• Precisely linked stereo operation
• Rapid and repeatable mastering settings

The digital control section is based on dual high-speed 32-bit microcontrollers, delivering engineering-grade audio tools optimized for professional mastering workflows and advanced signal routing environments.

Technical Specifications

Audio Performance

• Frequency response: 6 Hz – 27 kHz (-0.5 dB, ISO-R40 sweep)
• Frequency flatness: ±0.1 dB (20 Hz – 20 kHz)
• Dynamic range: 107 dB
• THD+N ratio: 0.05%
• THD ratio: 0.03%
• CMRR: >80 dB
• Crosstalk: >76 dB

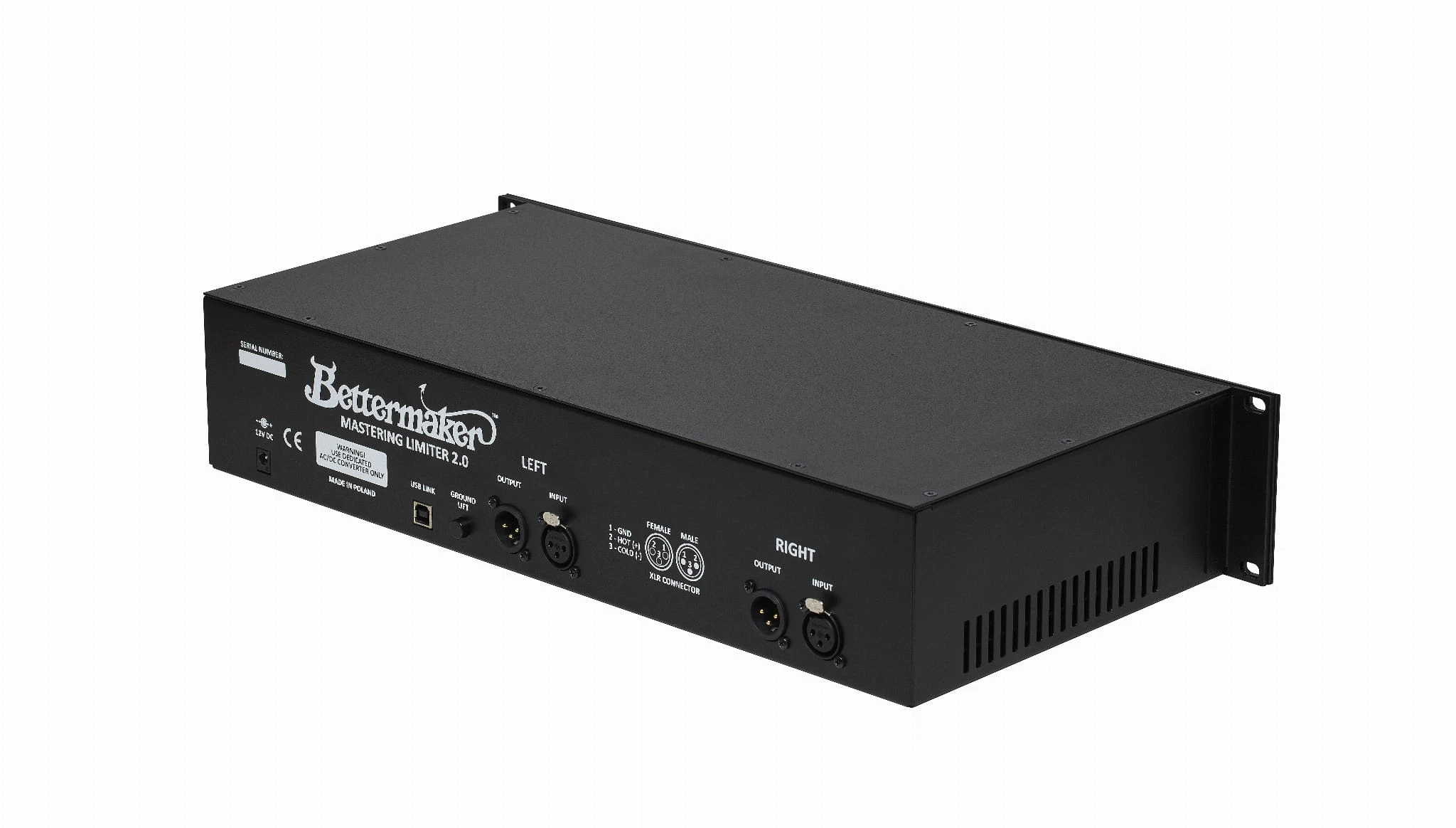

Connectivity

• Balanced XLR audio connections
• USB Type-B connection for PC/Mac integration
• 12V DC external power connection

Physical Specifications

• 2U enclosure
• Depth: 230 mm
• Shipping weight: 5 kg

The Bettermaker Mastering Limiter 2.0 is engineered for high-end recording studios, mastering environments, broadcast applications, and demanding professional audio workflows requiring transparent compression, analog character, and precise digital recall.
